| ब्रांड नाम: | FY |
| मॉडल संख्या: | FY-CBK-120C |
| एमओक्यू: | 1 सेट |
| कीमत: | 5000 |
| भुगतान की शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति करने की क्षमता: | प्रति माह 300 सेट |
| Crimping Range | 6-76mm (1/4"-3" inner diameter) |
| Quantity of Dies | 15 sets |
| System Pressure | 31.5Mpa |
| Motor Power | 4kw |
| Voltage Options | 110V/220V/380V/415V, 50HZ/60HZ |
| Crimping Force | 2800KN |
| Work Efficiency | 300pcs/h |
| Machine Dimensions | 840*1090*1760mm |
| Net Weight | 1250kg |
| Model | FY-CBK-120C Hose Pressing Machine |
| Crimping Range | 6-76mm (1/4"-3") |
| Crimping Force | 2800KN |
| Max. Opening | 165mm |
| Special Features | Customized die sets available, Special voltage options: 110V/220V/380V/415V 50/60Hz |

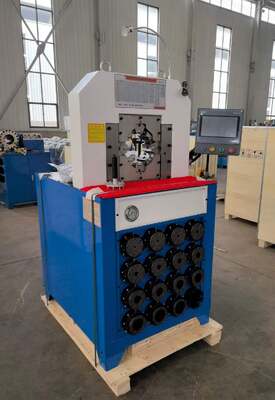

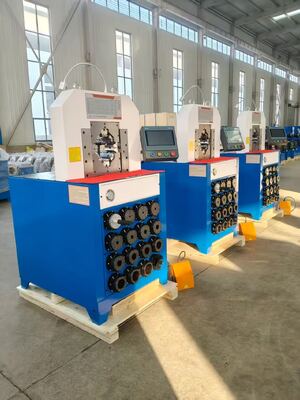

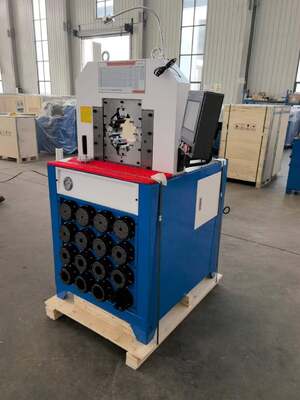

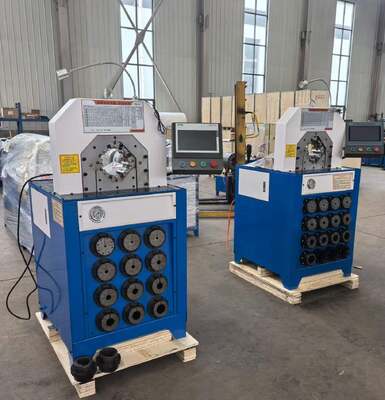

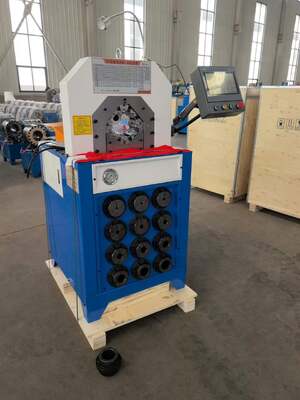

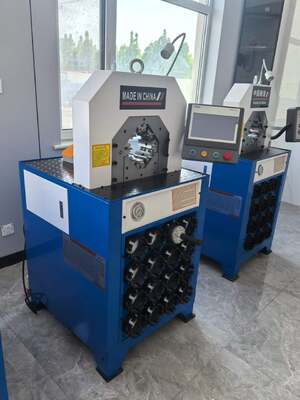

This 3 Inch Electric Hydraulic Hose Crimping Machine combines high force, wide range and automated PLC control to deliver dependable, production-grade crimping for workshops and manufacturers in the USA, Europe and Southeast Asia. Contact your supplier for configuration options, die sets and voltage choices to optimize the machine for your workflow.
The 3 Inch 6-76mm Hydraulic Hose Crimping Machine is a high-performance solution tailored for businesses focused on hydraulic applications. With its wide crimping range, multiple control system options, and fast change mould design, this machine enhances efficiency and productivity in hydraulic repairs and services. Invest in this reliable hydraulic hose crimping machine to elevate your operations and achieve outstanding results in hose management!
