12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use

12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use

ब्रांड नाम: FY
मॉडल संख्या: FY-51CZ
एमओक्यू: 1 सेट
भुगतान की शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति करने की क्षमता: प्रति माह 300 सेट
विस्तृत जानकारी
उत्पत्ति के प्लेस:
शंघाई, चीन
प्रमाणन:
CE
सुदृढीकरण:
1-4 परतें तार
क्रिमिंग रेंज:
6-51 मिमी
मरने की मात्रा:
10 सेट
शुद्धता:
0.01 मिमी
तंत्र दबाव:
30 एमपीए
मोटर शक्ति:
3.6KW
वोल्टेज:
12 वी / 24 वी (वैकल्पिक)
क्रिमिंग फोर्स:
600 टी
प्रमुखता से दिखाना:
स्मार्ट लाइट 12V/24V हाइड्रोलिक होज़ क्रिम्पिंग मशीन 2 इंच हाइड्रोलिक होज़ क्रिम्पर मशीन कार लोडिंग
पैकेजिंग विवरण:

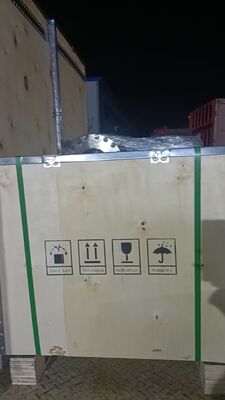

निर्यात मानक लकड़ी के बक्से
आपूर्ति की क्षमता:
प्रति माह 300 सेट
प्रमुखता देना:

3.6KW Motor Power Hydraulic Hose Crimping Machine

,

10 Sets Dies Hose Crimper

,

0.01 mm Accuracy Hydraulic Crimper

उत्पाद का वर्णन
Portable 12V/24V Hydraulic Hose Crimping Machine with Smart Light Indicator and 3.6KW Motor Power for Car Loading Use
Introducing the Smart Light 12V/24V Hydraulic Hose Crimping Machine, a versatile and efficient tool designed for crimping hydraulic hoses up to 2 inches in diameter. This portable machine is perfect for automotive professionals and service providers, making it an ideal solution for car loading applications.
Key Features
  • Dual Voltage Operation: Operates on both 12V and 24V, providing flexibility for various vehicles and settings.
  • Portable Design: Lightweight and compact with ergonomic handle for comfortable usage.
  • Wide Crimping Capacity: Handles hoses from 6mm to 51mm (up to 2 inches) including rubber, thermoplastic, and reinforced hoses.
  • Comprehensive Die Set: Includes 10 high-quality dies for precise crimping across multiple hose sizes.
  • Smart Light Indicator: Built-in visual feedback for monitoring the crimping process.
Advantages
  • Enhanced efficiency with quick hose preparation
  • Precision engineering for uniform and accurate crimping
  • Cost-effective solution integrating multiple functionalities
  • User-friendly operation suitable for all experience levels
  • Built-in safety features for operator protection
Technical Specifications
Model FY-51CZ Pipe Crimping Machine
Crimping Range 6-51mm (1/4"-2")
Crimping Force 600T
Max. Opening 114mm
Die Sets 10
System Pressure 30Mpa
Accuracy 0.01mm
Standard Voltage 12V/24V
Weight 170KG
Dimensions 650mm * 600mm * 600mm
12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use 0
12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use 1
12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use 2
12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use 3
12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use 4
12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use 5

* for non standard die sets

Customized die sets with different shape size available

Voltage 12V/24V is available

Optional Accessories
  • Quick Change Tool
  • Quick Change Die Set Rack
  • Car installing unit
Premium Features
12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use 6
Forged Cylinder: One piece structure prevents oil leakage, saves transfer time, and increases productivity.
12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use 7
Micrometer: FY51CZ features high accuracy dial (0.01mm) for precise measurements.
12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use 8
Die Set Reference Sheet: Helps choose proper die set for different crimping sizes.
12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use 9
12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use 10
Wide Usage: Suitable for mobile vans with 12V/24V power supply, high pressure oil rubber hose assembly, low pressure water/air hose pressing, steel tube swaging, wire rope pressing, and lock device making.
