12V नली क्रॉपर
Created with Pixso.

12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure

12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure

ब्रांड नाम: FY
मॉडल संख्या: FY-51CZ
एमओक्यू: 1 सेट
भुगतान की शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति करने की क्षमता: प्रति माह 300 सेट
विस्तृत जानकारी
उत्पत्ति के प्लेस:
शंघाई, चीन
प्रमाणन:
CE
सुदृढीकरण:
1-4 परतें तार
क्रिमिंग रेंज:
6-51 मिमी
मरने की मात्रा:
10 सेट
शुद्धता:
0.01 मिमी
तंत्र दबाव:
30 एमपीए
मोटर शक्ति:
3.6KW
वोल्टेज:
12 वी / 24 वी (वैकल्पिक)
क्रिमिंग फोर्स:
600 टी
प्रमुखता से दिखाना:

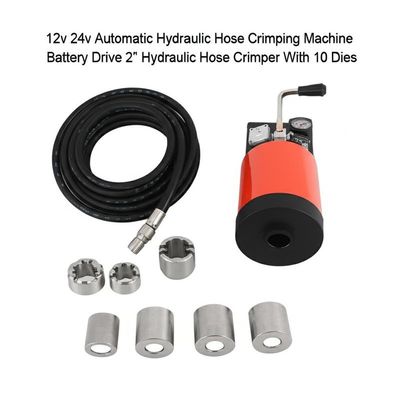

12v 24v स्वचालित हाइड्रोलिक नली क्रिम्पिंग मशीन बैटरी ड्राइव 2" हाइड्रोलिक नली क्रिम्पर 10 डाइज
पैकेजिंग विवरण:
निर्यात मानक लकड़ी के बक्से
आपूर्ति की क्षमता:
प्रति माह 300 सेट
प्रमुखता देना:

600T Hydraulic Hose Crimping Machine

,

0.01mm Accuracy Hose Crimper

,

30MPa Pressure Hydraulic Crimper

उत्पाद का वर्णन
12V/24V Automatic Hydraulic Hose Crimping Machine
The 12V/24V Automatic Hydraulic Hose Crimping Machine is a professional-grade tool designed for efficient crimping of hydraulic hoses up to 2 inches in diameter. This battery-driven crimper delivers exceptional performance for automotive, construction, and industrial applications, combining convenience with reliable operation.
Key Features
  • Dual Voltage Operation: Works with both 12V and 24V power sources for versatile use in vehicles and field applications
  • Automatic Functionality: Ensures consistent, precise crimping results with minimal operator effort
  • Wide Crimping Capacity: Handles hoses from 6mm to 51mm (1/4" to 2") diameter
  • Comprehensive Die Set: Includes 10 high-quality dies for various hose sizes and types
  • Portable Design: Compact and lightweight for easy transport to job sites
  • High Power Force: Delivers 600T crimping force for secure connections
Advantages
  • Enhanced Productivity: Automatic operation reduces hose preparation time significantly
  • Precision Engineering: Advanced hydraulic technology ensures accurate, uniform crimps
  • Cost Efficiency: Eliminates need for multiple machines with its versatile operation
  • User-Friendly: Intuitive controls suitable for both beginners and professionals
  • Safety Features: Built-in mechanisms ensure secure operation
Technical Specifications
Model FY-51CZ Pipe Crimping Machine
Crimping Range 6-51mm (1/4-2 inch)
Crimping Force 600T
Max. Opening 114mm
Die Sets 10
System Pressure 30Mpa
Accuracy 0.01mm
Standard Voltage 12V/24V
Motor Power 3.6KW
Dimensions (LxWxH) 650x600x600mm
Weight 170KG

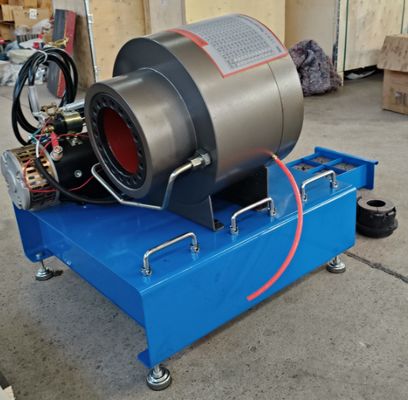

12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure 0

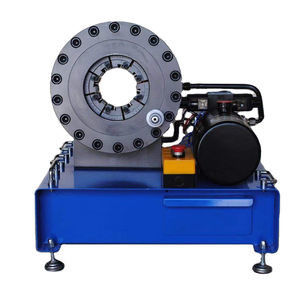

12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure 1
12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure 2

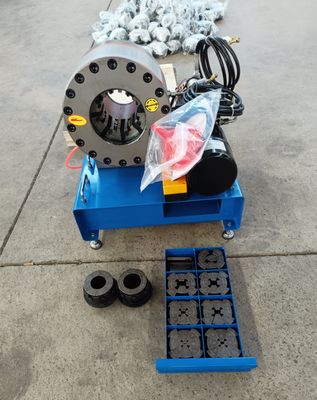

12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure 3

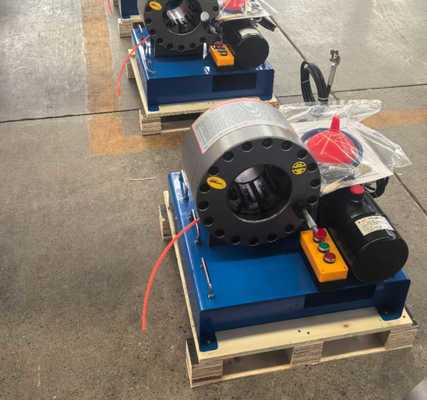

12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure 4
12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure 5
Note: Customized die sets with different shapes and sizes are available. Both 12V and 24V voltage options are supported.
Optional Accessories
  • Quick Change Tool
  • Quick Change Die Set Rack
  • Car installing unit
Forged Cylinder

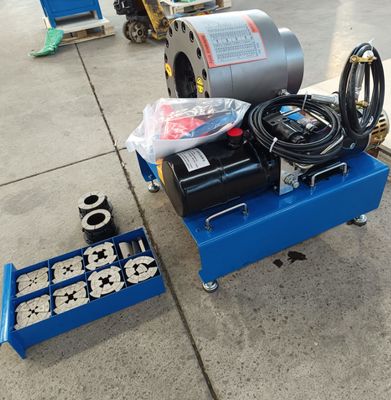

One-piece structure prevents oil leakage, saves transfer time, and increases productivity. 12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure 6
Micrometer

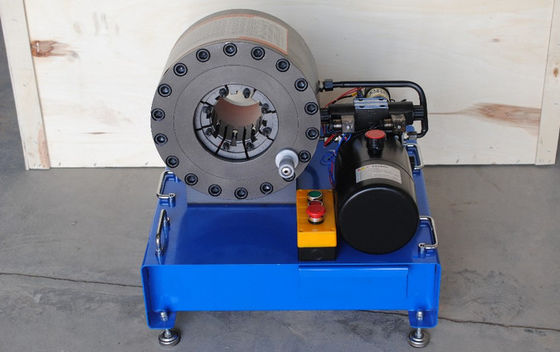

FY51CZ features high accuracy dial with 0.01mm precision. 12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure 7
Die Set Reference Sheet
Comprehensive guide for selecting proper die sets for different crimping sizes. 12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure 8
Applications
Suitable for mobile van installations (12V/24V power) and various crimping applications including:
  • High pressure oil rubber hose assembly
  • Low pressure water or air hose pressing
  • Steel tube swaging
  • Wire rope pressing
  • Lock device making
12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure 9 12V/24V Automatic Hydraulic Hose Crimping Machine with 600T Force, 0.01mm Accuracy, and 30MPa Pressure 10
