हाइड्रोलिक नली क्रिम्पिंग मशीन
Created with Pixso.

Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension

Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension

ब्रांड नाम: FY
मॉडल संख्या: FY-51YTJ
एमओक्यू: 1 सेट
कीमत: USD$ 1450/1400/1350/1300
भुगतान की शर्तें: एल/सी, टी/टी, डी/ए, डी/पी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति करने की क्षमता: प्रति माह 300 सेट
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन, शंघाई
प्रमाणन:
CE
तंत्र दबाव:
26एमपीए/31.5एमपीए(वैकल्पिक)
मरने की मात्रा:
10 सेट
क्रिमिंग रेंज:
6-51 मिमी (1/4 ''-2 '' नली का इंच आंतरिक व्यास)
कुल वजन:
320 किग्रा
प्रमुखता से दिखाना:
हाइड्रोलिक नली क्रिमिंग मशीन, फ्लेक्सिबल हाइड्रोलिक नली क्रिमिंग मशीन, फ्लेक्सिबल नली क्रिमिंग मशीन
आवेदन:
चर्म -नली
बिक्री के बाद सेवा प्रदान की गई:
वीडियो तकनीकी सहायता, ऑनलाइन समर्थन
आयाम(एल*डब्ल्यू*एच):
1030*510*1270 मिमी
प्रोडक्ट का नाम:
चौड़ी नली अनुप्रयोगों के लिए 10 डाई और 6-51 मिमी रेंज वाली 2 इंच हाइड्रोलिक नली क्रिम्पिंग और स्किवि
पैकेजिंग विवरण:
लकड़ी का बक्सा
आपूर्ति की क्षमता:
प्रति माह 300 सेट
प्रमुखता देना:

26Mpa/31.5Mpa System Pressure Hydraulic Hose Crimping Machine

,

320kg Gross Weight Hose Crimper

,

1030*510*1270 mm Dimension Hydraulic Crimper

उत्पाद का वर्णन
2 Inch Hydraulic Hose Crimping And Skiving Machine with 10 Dies and 6-51mm Range
Product Overview
The 2 Inch Hydraulic Hose Crimping and Skiving Machine is an advanced tool designed to efficiently crimp and skive hydraulic hoses ranging from 6mm to 51mm. With its robust construction and user-friendly features, this machine is ideal for automotive, construction, and manufacturing applications. Featuring 10 dies for versatility, it is essential for professionals working with hydraulic systems.
Key Features
  • Dual Functionality: Combines crimping and skiving capabilities for efficient hose preparation
  • Wide Crimping Range: Handles hoses from 6mm to 51mm (1/4" to 2")
  • Comprehensive Die Set: Includes 10 high-quality dies for various hose types
  • Robust Construction: High-strength materials ensure durability in demanding environments
  • User-Friendly Interface: Intuitive controls suitable for all experience levels
Advantages
  • Increased efficiency with combined crimping/skiving functions
  • Precision engineering for uniform, accurate results
  • Cost-effective solution saving equipment costs and space
  • Versatile for various hose types and applications
  • Safety features for operator protection
Technical Specifications
Attribute Value
System Pressure 26Mpa/31.5Mpa (Optional)
Crimping Range 6-51mm (1/4"-2" inner diameter)
Quantity of Dies 10 sets
Accuracy 0.01mm
Work Efficiency 200pcs/h
Gross Weight 320kg

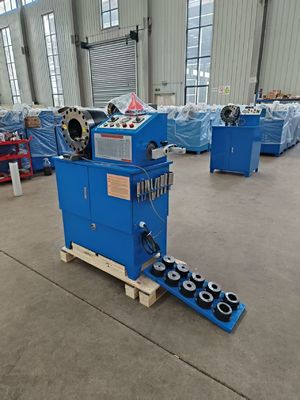

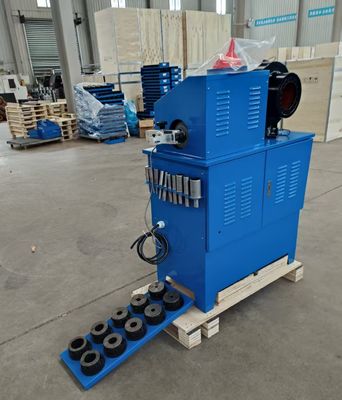

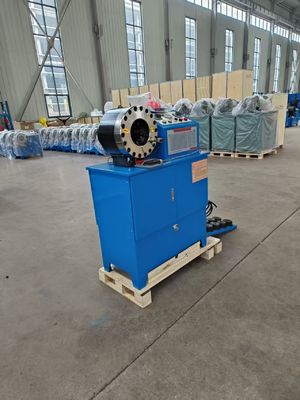

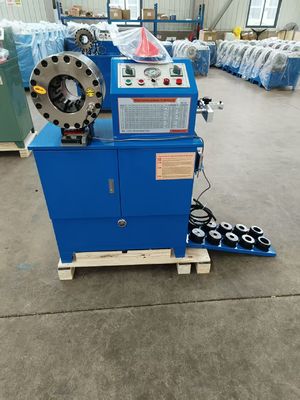

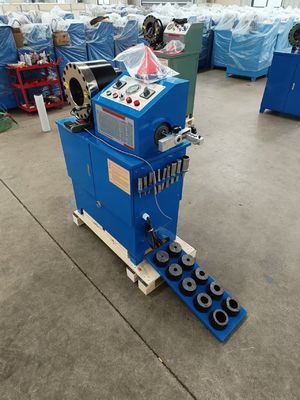

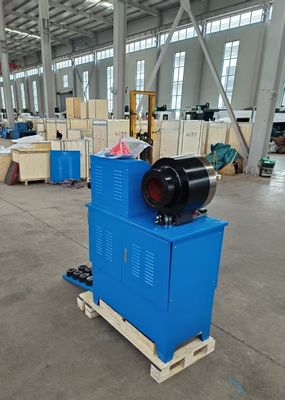

Product Images
Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension 0
Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension 1
Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension 2
Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension 3
Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension 4
Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension 5
Applications
  • Construction sites
  • Mining operations
  • Agricultural settings
  • Transportation industry
  • Industrial maintenance
  • Hydraulic system repair
Support and Services
  • Video technical support
  • Online troubleshooting
  • Installation guidance
  • Preventative maintenance advice

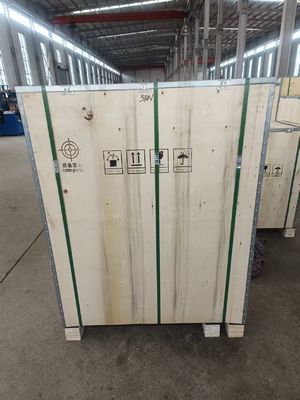

Packing and Shipping
The machine is securely packaged in wooden crates for protection during transportation. Standard delivery time is 2-7 working days with tracking information provided.
Frequently Asked Questions
Q: What is the model number for this machine?
A: FY-51YTJ Hydraulic Hose Crimping Machine
Q: Is this machine certified?
A: Yes, it is CE certified.
Q: What is the minimum order quantity?
A: 1 set, with a supply ability of 300 sets per month.
Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension 6
