| ब्रांड नाम: | FY |
| मॉडल संख्या: | FY-P38 |
| एमओक्यू: | 1 set |
| कीमत: | USD$ 1850/1800/1750/1700 |
| भुगतान की शर्तें: | L/C,T/T,D/A,D/P,Western Union,MoneyGram |
| आपूर्ति करने की क्षमता: | 300 sets per month |

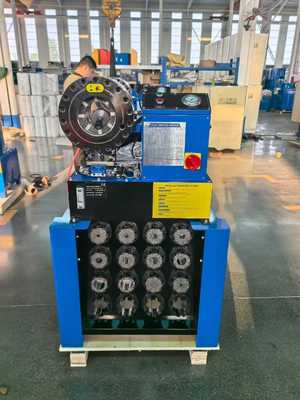

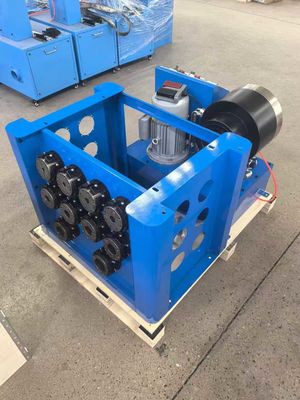

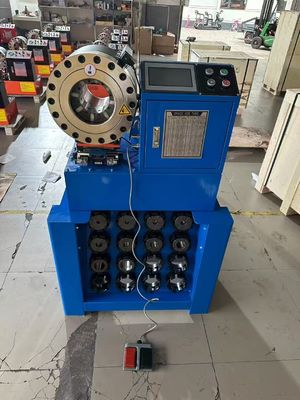

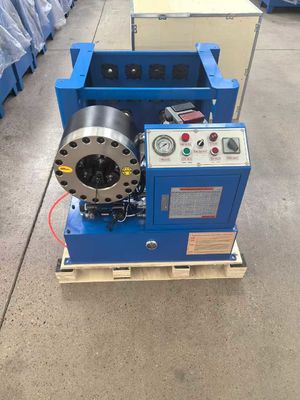

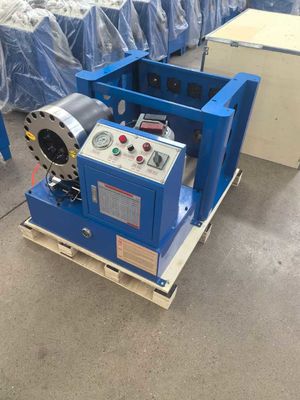

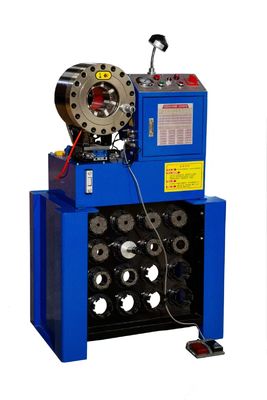

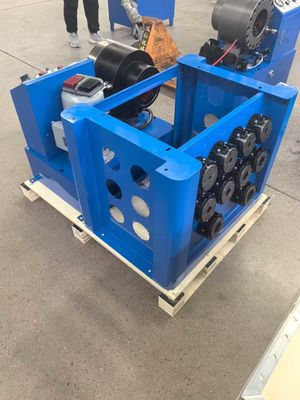

The P38 model hydraulic hose crimping machine delivers high-precision crimping for hoses ranging from 6mm to 38mm (1/4" to 1.5"). Featuring a robust construction with rack and fast-change mold tools, this industrial-grade crimper ensures efficient hose assembly for various applications.
| Crimping Range | 6-38mm (1/4"-1.5") |
| Crimping Force | 300 Ton |
| System Pressure | 26/31.5 MPA (Optional) |
| Power | 3KW/4KW |
| Work Efficiency | 200 pcs/hour |
| Dimensions | 950×630×700 mm |
| Weight | 275 kg |
| Voltage Options | 220V/240V/380V/415V |
| Parameter | Specification |
|---|---|
| Model | FY-P38 |
| Maximum Opening | 20±mm |
| Maximum Open Diameter | 104mm |
| Output Volume of Pump | 2.5L/5L (Optional) |
| Die Sets Included | 8 sets (Various sizes from 15-60mm) |
Multifunctional control panel with different operation modes for precise control.
8 hardened die sets (59-63HRC) with quick-change tool for improved productivity.
Features a forged oil cylinder for superior anti-wear performance and famous brand motor for reliable operation.
The FY-P38 is capable of crimping various hose types including:
Note: Custom die sets and special voltage configurations (220V, 240V, 380V, 415V) are available upon request.
