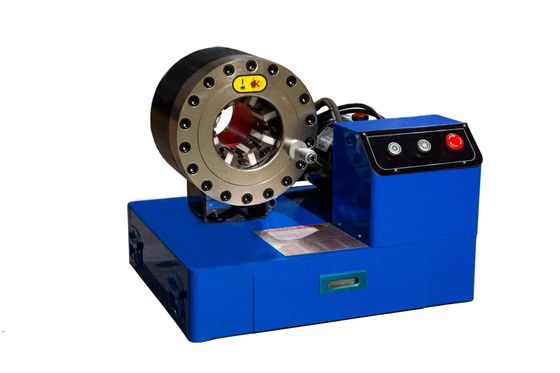

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic 6-51mm hose Crimper

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic 6-51mm hose Crimper

ब्रांड नाम: FY
मॉडल संख्या: FY-51CZ
एमओक्यू: 1 सेट
भुगतान की शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति करने की क्षमता: प्रति माह 300 सेट
विस्तृत जानकारी
उत्पत्ति के प्लेस:
शंघाई, चीन
प्रमाणन:
CE
सुदृढीकरण:
1-4 लेयर्स वायर/4SP
क्रिम्पिंग रेंज:
6-51 मिमी/2 इंच
मैं:
10 सेट
सटीकता:
0.01 मिमी/0.1 सेमी
सिस्टम का दबाव:
30MPA/300 बार
मोटर शक्ति:
3.6KW/3600W
वोल्टेज:
12V/24V (वैकल्पिक) ग्राहक की मांग पर निर्भर करता है
ऐंठन बल:
600T/0.6mt
उत्पाद का नाम:
12V/24V 10 मर जाता है 2 इंच ब्लू कलर मैनुअल लट नली क्रिम्पर बैटरी ड्राइव हाइड्रोलिक नली पाइप क्राइमि
पैकेजिंग विवरण:
निर्यात मानक लकड़ी के बक्से
आपूर्ति की क्षमता:
प्रति माह 300 सेट
प्रमुखता देना:

Battery Drive Hose Crimper

,

Braided Hose Crimper

,

12V Hose Pipe Crimping Machine

उत्पाद का वर्णन

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-51mm/hose Crimper/hose Crimping Machine


Product Description

Introducing our 2 Inch Manual Hose Crimper, a powerful and versatile tool designed for efficient hose assembly in various applications. This battery-driven hydraulic hose crimping machine features 10 dies and accommodates hose sizes from 6mm to 51mm, making it ideal for both industrial and automotive use. With its striking blue color and robust construction, this crimper is not only functional but also visually appealing.

Key Features

  • Versatile Die Selection: Equipped with 10 different dies, this hose crimper allows you to easily crimp a wide range of hose sizes, ensuring flexibility for various applications.
  • Dual Voltage Operation: The machine operates at both 12V and 24V, providing the convenience of use in different environments, whether in the workshop or on-site.
  • Manual Control: Designed for ease of use, this crimper allows for precise control during the crimping process, ensuring consistent and reliable results.
  • Durable Construction: Made from high-quality materials, this crimper is built to withstand the rigors of demanding work environments, ensuring long-lasting performance.
  • User-Friendly Design: The intuitive design of the machine makes it easy to operate, allowing users of all skill levels to achieve accurate crimping.

Advantages

  1. Cost-Effective: The battery-driven design eliminates the need for electrical outlets, reducing operational costs and making it suitable for remote locations.
  2. Portability: Lightweight and compact, this 2-inch manual hose crimper is easy to transport, making it perfect for fieldwork and mobile repairs.
  3. Reliable Performance: The crimper delivers consistent crimp quality, ensuring strong, leak-proof connections for hydraulic hoses.
  4. Minimal Maintenance: With fewer components than electric models, this crimper requires less maintenance, enhancing its reliability and lifespan.


TECHNICAL DATA

Model FY-51CZ Pipe Crimping Machine
Crimping Range 6-51(mm)
Crimping Force 600(T)
Hose Size 1/4-2(inch)
Max. Opening 114(mm)
Die Sets 10
output volume of pump
4L
System Pressure 30(Mpa)
Accuracy 0.01(mm)
the max open tolerance
30 ±mm
Standard Voltage 12V/24(V)
Motor Power 3.6(KW)
Length 650(mm)
Width 600(mm)
Height 600(mm)
Weight 170(KG)

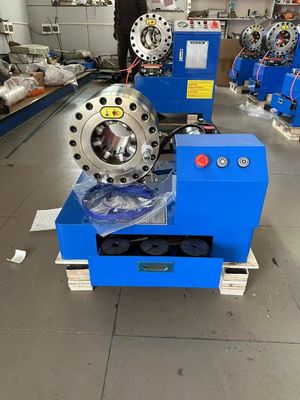

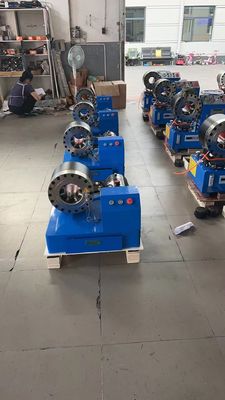

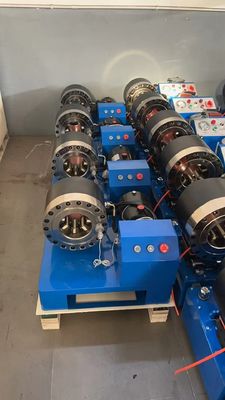

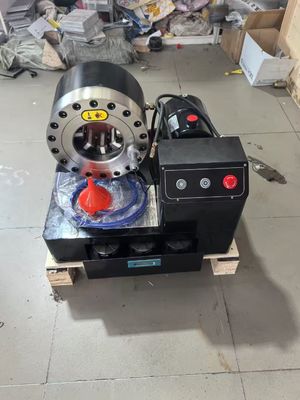

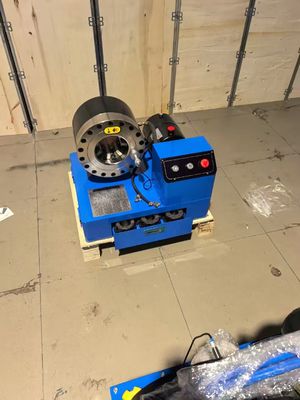

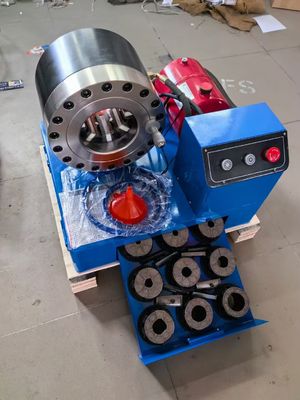

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 0

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 1

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 2

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 3

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 4

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 5

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 6

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 7

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 8

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 9

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 10


12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 11

NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available

Crimping Range
6-51mm(1/4''-2''inner diameter of hose)
The Largest Crimping Pressure
600T
accurcy
0.01mm
Dimension
0.75m*0.70m*0.70m(0.37 m³)
Maximum open diameter
114mm
dies
10 sets
Item No.of dies
length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47)
Output volume of pump
4L
Rated pressure
30Mpa
Work efficiency
200pcs/h
Weight
170kg
packing dimension
750*700*700mm

OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit



Crimping Range
6-51mm(1/4''-2''inner diameter of hose)
The Largest Crimping Pressure
600T
accurcy
0.01mm
Dimension
0.75m*0.70m*0.70m(0.37 m³)
Maximum open diameter
114mm
dies
10 sets
Item No.of dies
length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47)
Output volume of pump
4L
Rated pressure
30Mpa
Work efficiency
200pcs/h
Weight
170kg
packing dimension
750*700*700mm

► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 13

► MICROMETER
FY51CZ is with high accuracy dial, 0.01mm.

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 14

► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 15

► WIDE USAGE
FY-51CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 16

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 17


12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 18

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 19

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic  6-51mm hose Crimper 20
